Gas Connector

1. Bolt with female thread for cylinder
2. Pressure gauge for checking of the pressure of the LPG present in the cylinder with indicator of the quantity and detection of leaks and gas passage closure.
3. Pressure regulator equipped with a filter to prevent the introduction of foreign bodies contained in the gas.
4. Certified rubber hose
5. 1/2” quick coupling certified for gas use. Female part integrated on the pressure regulator pipe and male part to be assembled on the gas ramp.

How to connect the pizza oven to the gas cylinder

To connect the gas regulator to the gas cylinder, follow the 4 steps below.

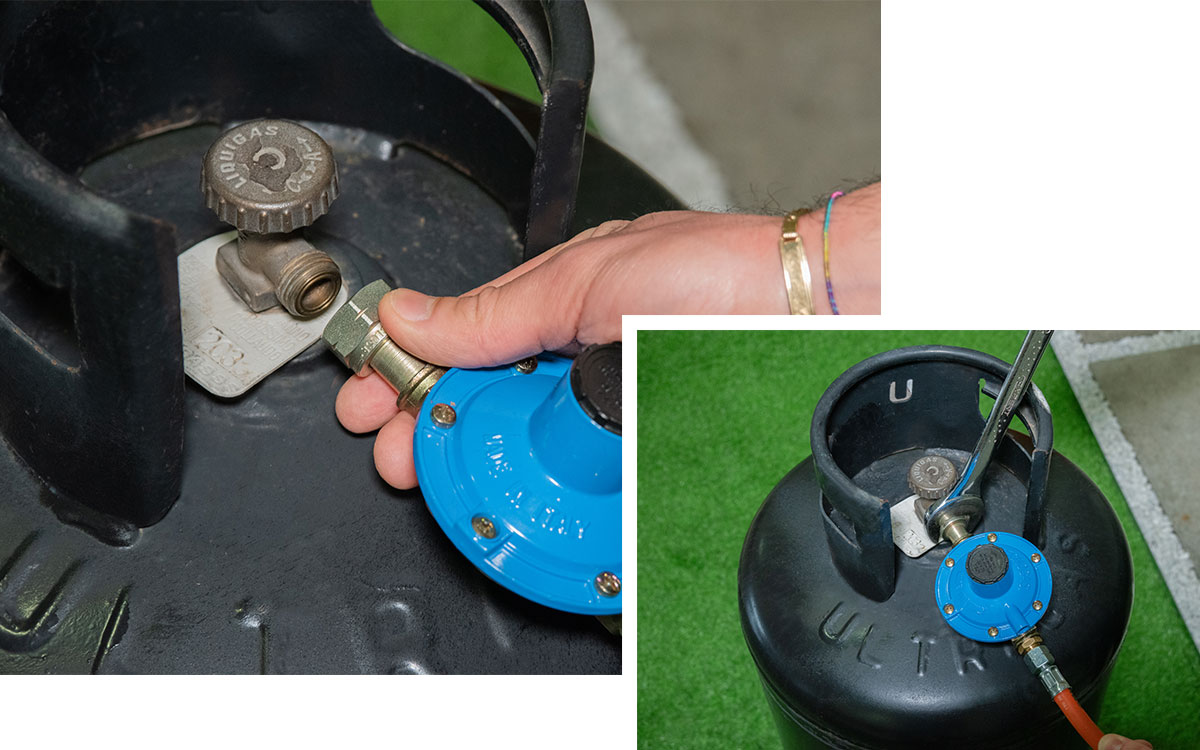

STEP 1

Screw the gas regulator into the cylinder valve and, by hand, turn the bolt anti-clockwise.

Use a size 25 wrench for perfect tightening and avoid damaging the valve gasket, thus compromising its seal.

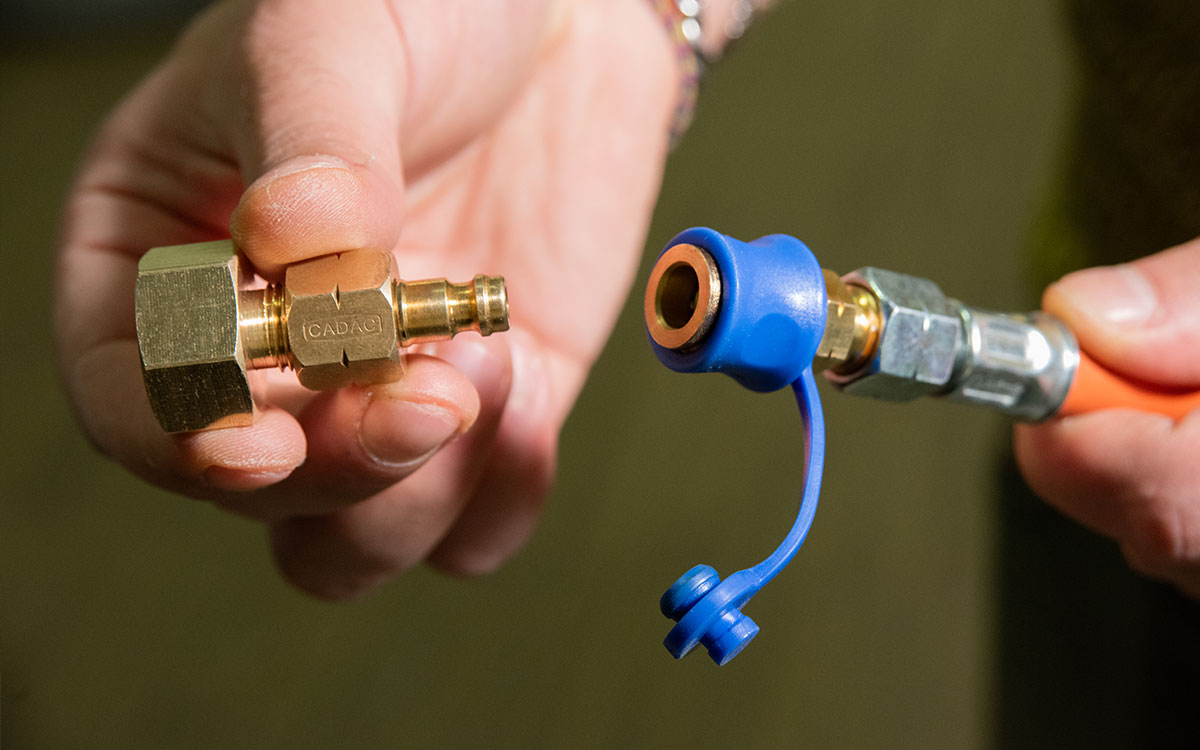

STEP 2

Release the male part from the gas pipe by pulling back the knurling on the quick coupling.

Important: hold the other part with your hand as in the photo.  Release could make it jump and fall to the ground, resulting in damage.

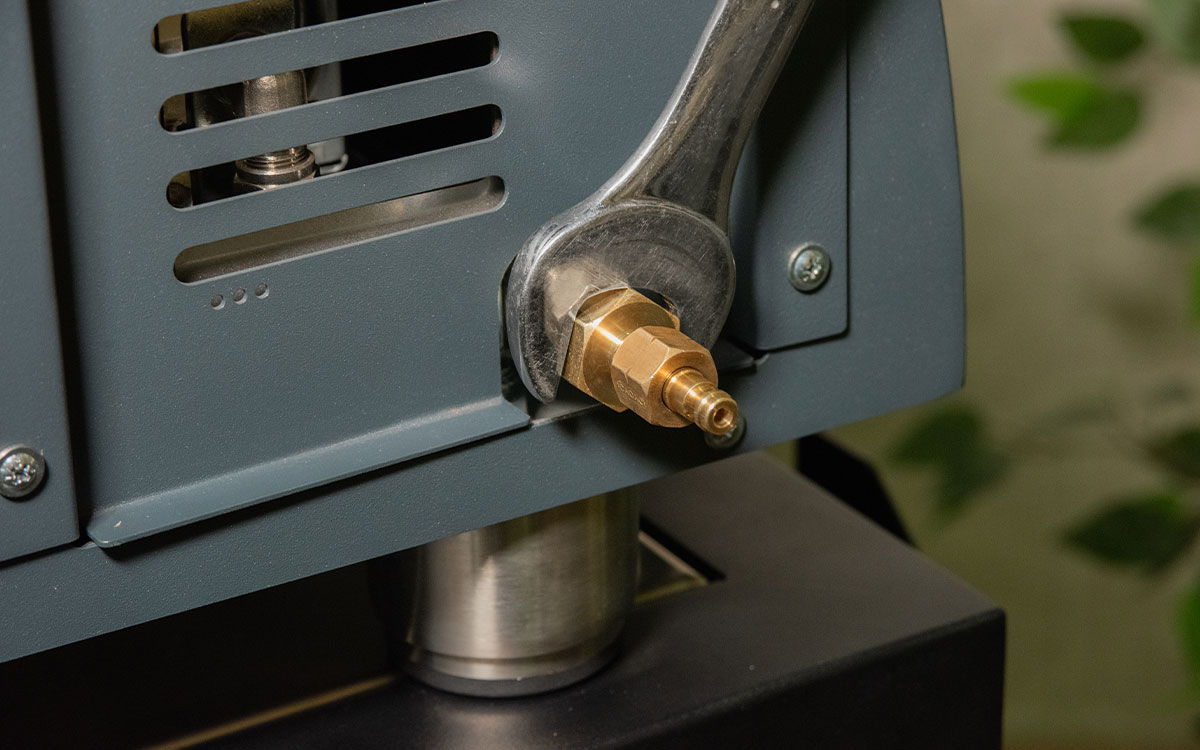

STEP 3

Connect the male part to the gas ramp, first by hand and then using a size 25 wrench. Check for the included gasket.

If leaks are detected, it is necessary to use Teflon to seal the connection.

STEP 4

Connect the hose using the quick coupling-release system, applying a slight force.
